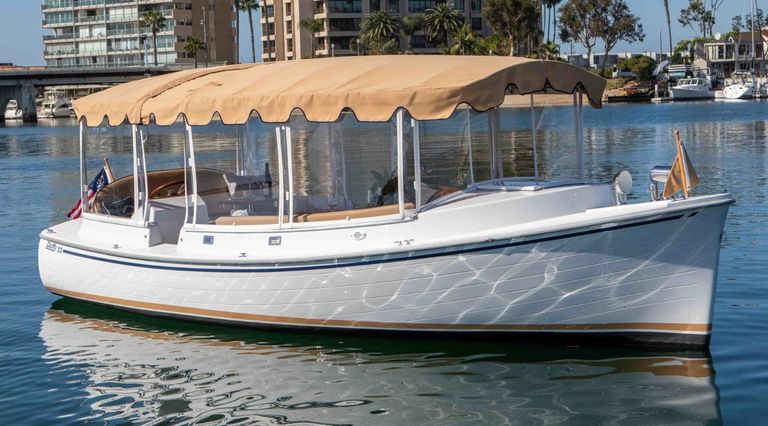

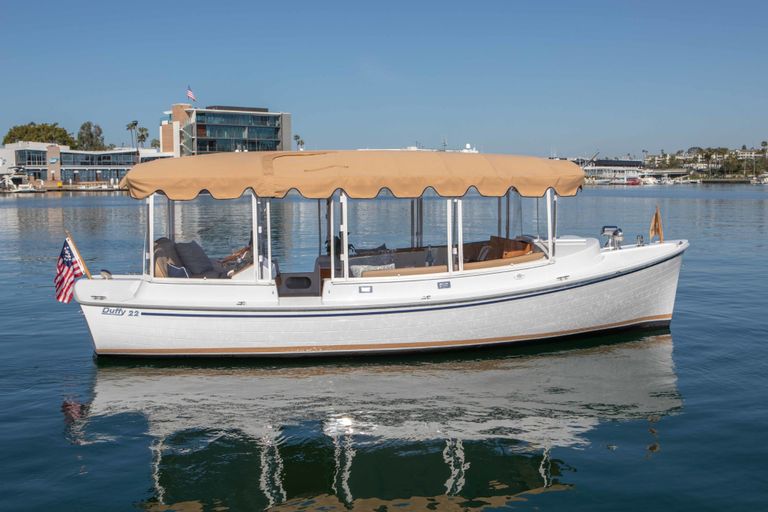

CUDDY CABIN 22
The Cuddy Cabin 22 was one of the first models to incorporate our Duffy Power Rudder™ technology. She has a unique look compared to the rest of our lineup, along with the ability to add a marine toilet up forward inside the Cuddy Cabin. Whether you use the forward cabin for a bathroom, storage area, or just a cool place for the grandkids to play in – you can’t go wrong with this model.
STANDARD FEATURES
Prices from £85,000 including UK VAT at 20%. Supplied ex-Bourne End Marina, Buckinghamshire, SL8 5RP.
Please contact us for a detailed quote and to discuss your required specification.
All boats are supplied to be fully compliant with UK specification and meets conformity to CE or CA recreational craft requirements.
SPECIFICATIONS
- Length: 22′ – 0″
- Beam: 9′ – 3″
- Draft: 29″
- Capacity: 12 Adults
- Displacement: 4,315 lbs.
- Top Speed: 6.0 MPH
- Running Time:
@Cruising Speed: 12.5 hours
@Top Speed: 6.5 hours
HULL
- Hand Laminated Fiberglass
- White Gelcoat Color
- Antifouling Bottom Paint
- Lifting Eyes (3)
- Vinyl Sheer Stripe
- Vinyl Waterline Stripe
- Molded-In Plank Lines
DECK
- Hand Laminated Fiberglass
- White Non-Skid Surface
- Bow & Stern Stainless Steel Cleats (4)
- Bow & Stern Flag
- Stainless Deck Vent
- Stainless Mooring Bitt & Chocks
- Stainless Deck Cowling Vent
- Fender Cleats (4)
PROPULSION
- Patented Duffy Power Rudder™ Drive System
- DC 48 Volt Motor
- Solid State Controller & Throttle
- 6 Volt Deep Cycle Batteries (16)
- Smart Charger 230 Volt AC
- Smart Plug (w/ 50′ Power Cord)
- Patented Weedless Design Composite Propeller
CANVAS
- Vinyl Seat & Backrest Cushions
- Covers for Tables & Helm
- Patented Duff-Eze III™ Window Enclosure
- Surrey Top (Sunbrella™ Fabric)
- Stainless Steel Frame

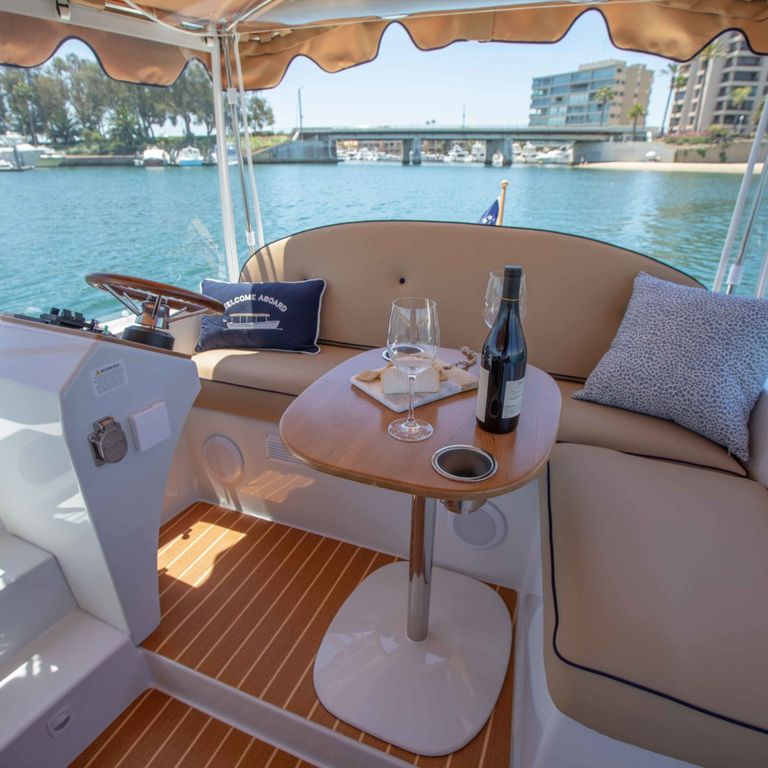

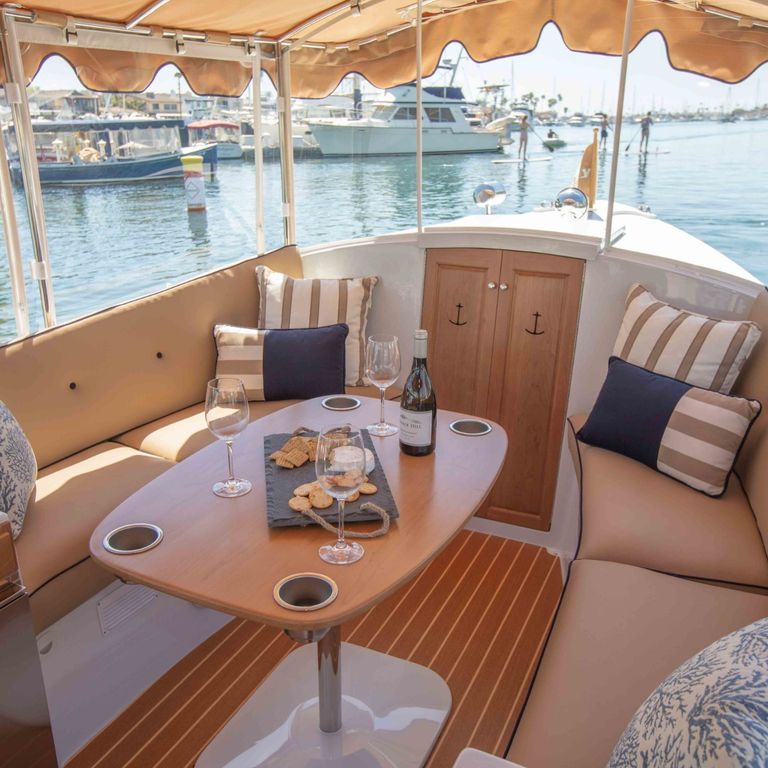

INTERIOR
- White Gelcoat Color
- Teak & Holly Vinyl Flooring
- Forward (1) & Aft (1) Movable Wood Tables

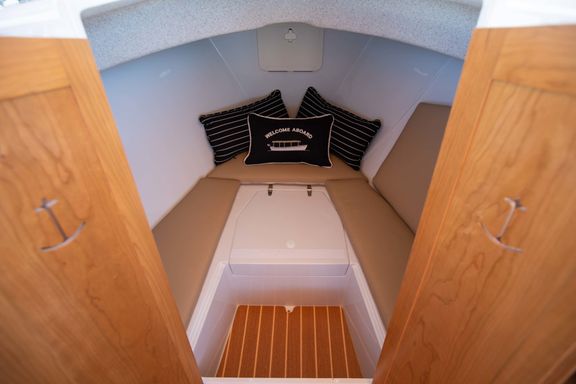

- Forward Cabin Area with Cushions
- Wood Cabinet & Drawer (Portside)
- Bottle Storage Drawer & Locker (Starboard Side)
- Storage Under All Seating (Clean, Smooth Gelcoat)
- 70 qt Built-In Insulated Ice Box
- Stainless Steel Exit Handles
- 230 Volt A/C Outlet (Source: Shore Power)

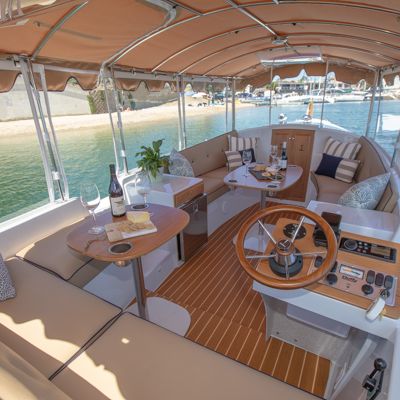

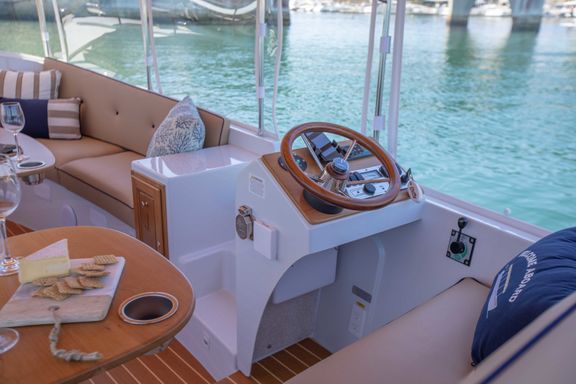

HELM STATION
- Wood Steering Wheel
- Wood Dashboard
- Energy Gauge
- LED Running Lights
- Electric Horn
- Overhead Dome Lights with Dimmer (2)
- Floor Lights (4)
- Charger Indicator
- Phone Holder
- Fusion™ Bluetooth Stereo w/ 4 Waterproof Marine Speakers
- USB Port (Supports Charging Device & Connects to Stereo)
- Automatic Bilge Pump
- 12 Volt Outlet
ADDITONAL EXTRAS
- Remote Controlled Stainless Steel Spotlight - £1,000
- 1200 Watt Inverter - £1,400
- Stainless Steel AC/DC Refrigerator £1,600
- Full Boat Cover (Sunbrella Fabric) - £1,700
- Electric Powered Anchor System - £1,700
- Electric Marine Head (Toilet) - £2,000
Please note these are only available when the boat is in production at the factory.
ACCESSORIES
- Fabric Seats & Backrest Cushions
- All-Weather Duf-Eze III Cabin Enclosure
- Electric Bilge Pump with Automatic Float Switch
- Forward Illuminated Bar
- Forward Wood Lockable Bar Door with Trim
- Helm Cover
- Hand Finished Mahogany Wood Steering Wheel
- Interior Dome Lights (2) and Courtesy Lights (5)
- iPod® Docking Station
- Sound System w/4 Deluxe Waterproof Marine Speakers
- 230-volt AC Outlet
- Vinyl Wood-Like Flooring
- Starboard Wood Front Lockable Drawers
- Forward Wood Table with 4 Drink Holders
- Surrey Top (Sunbrella™ Fabric)
- Outside Aft Seating (SeaQuest™ Fabric) (White Only) Includes Small Cover (Sunbrella™ Fabric) (Toast Only)
- Trash Container
- Wood Dash
- Wood Flagstaf with Bow Burgee
- 50’ Extension Cord (Smart Plug)
COLOURS
- Bottom Paint: Black
- Cushions (Capriccio Vinyl): Toast, Navy, White
- Cushions: (Sunbrella Fabric): Captain’s Navy, Toast, Burgundy, Black, Red, Forest Green
- Cushion Piping: Captain’s Navy, Toast, Burgundy, Natural, Black, Red, Forest Green
- Deck/Liner: White
- Hull: White
- Sheer Stripe: White, Black, Dark Blue, Buckskin, Cardinal Red, Forest Green, Burgundy
- Surrey Top: (Sunbrella) Captain’s Navy, Toast, Burgundy, Black, Red, Forest Green
- Surrey Trim: Captain’s Navy, Toast, Burgundy, Natural, Black, Red, Forest Green
- Vinyl Flooring: Teak & Holly
- Waterline: White, Black, Dark Blue, Buckskin, Cardinal Red, Forest Green, Burgundy
- Window Stamoid: White
ADDITONAL COLOURS
- Cushions: Custom Colours - £700 (one colour)
- Cushions: Customer Colours - £1,000 (two colours)
- Cushion Piping: Custom Colours - £150
- Deck/Liner: Custom Colours (Bisque) - £1,700
- Hull: Customer Colours (Steel Blue RAL #5011, Jet Black RAL #9005, Signal Red RAL #3001) - £1,700
- Hull: Maxguard Special Colours - £2,000
- Sheer/Waterline Stripe: Customer Colours - £200
- Surrey Top: Customer Colours - £700
- Surrey Top Scallop (Sunbrella Striped Fabric) - £400
- Surrey Trim: Custom Colours - £150
Please note these are only available when the boat is in production at the factory.
